Свойства
- – Изготовлено согласно DIN 338
- – Угол крестовой заточки сверла 135° для оптимального центрирования при засверливании

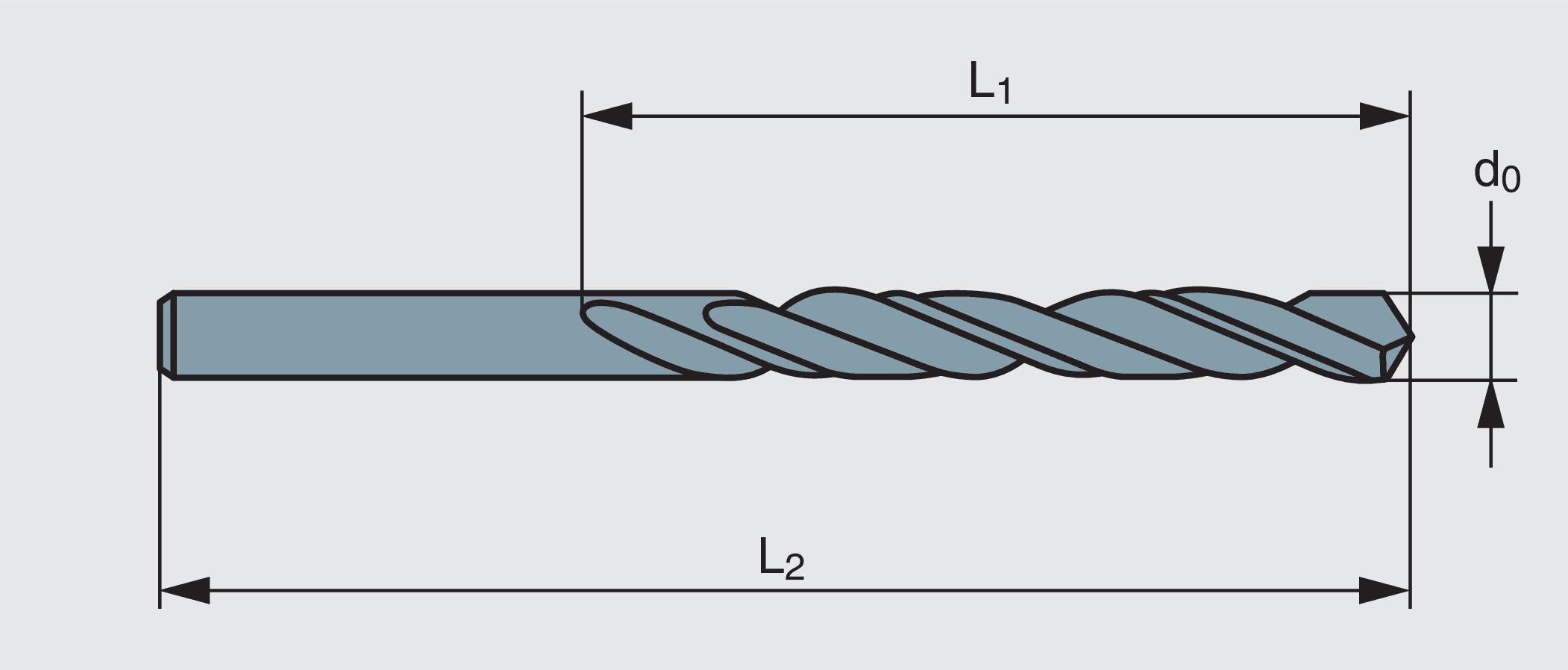

Технические данные
|
| HSSG015 | 1,5 | 18 | 40 | 10 | |
| HSSG020 | 2,0 | 24 | 49 | 10 | |
| HSSG025 | 2,5 | 30 | 57 | 10 | |
| HSSG030 | 3,0 | 33 | 61 | 10 | |
| HSSG031 | 3,1 | 36 | 65 | 10 | |
| HSSG032 | 3,2 | 36 | 65 | 10 | |
| HSSG033 | 3,3 | 36 | 65 | 10 | |
| HSSG035 | 3,5 | 39 | 70 | 10 | |
| HSSG040 | 4,0 | 43 | 75 | 10 | |
| HSSG041 | 4,1 | 43 | 75 | 10 | |
| HSSG042 | 4,2 | 43 | 75 | 10 | |
| HSSG045 | 4,5 | 47 | 80 | 10 | |
| HSSG050 | 5,0 | 52 | 86 | 10 | |
| HSSG050* | 5,1 | 52 | 86 | 10 | |
| HSSG052 | 5,2 | 52 | 86 | 10 | |
| HSSG055 | 5,5 | 57 | 93 | 10 | |
| HSSG060 | 6,0 | 57 | 93 | 10 | |
| HSSG065 | 6,5 | 63 | 101 | 10 | |
| HSSG070 | 7,0 | 69 | 109 | 10 | |
| HSSG075 | 7,5 | 69 | 109 | 10 | |
| HSSG080 | 8,0 | 75 | 117 | 10 | |
| HSSG085 | 8,5 | 75 | 117 | 10 | |
| HSSG090 | 9,0 | 81 | 125 | 10 | |
| HSSG095 | 9,5 | 81 | 125 | 10 | |
| HSSG100 | 10,0 | 87 | 133 | 10 | |
| HSSG105 | 10,5 | 87 | 133 | 5 | |
| HSSG110 | 11,0 | 94 | 142 | 5 | |
| HSSG115 | 11,5 | 94 | 142 | 5 | |
| HSSG120 | 12,0 | 101 | 151 | 5 | |
| HSSG125 | 12,5 | 101 | 151 | 5 | |
| HSSG130 | 13,0 | 101 | 151 | 5 | |
Чугун
Листовая сталь
Железо
Цветные металлы
Сталь
