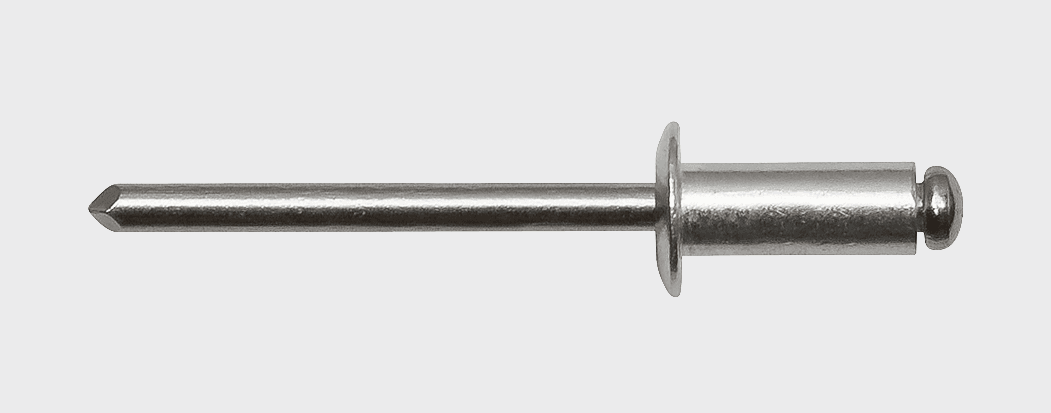

Алюминий / Нерж. сталь Заклепка вытяжная, стандартный бортик
Сталь
Нерж. сталь
Цветные металлы
RAL
Свойства
- – Техническое свидетельство о пригодности Минстроя России (ФАУ ФЦС)
- – Высокая степень сжатия соединяемых материалов
- – Гарантированное качество соединения
- – Не требуется специальное обучение
- – Возможность соединения различных материалов
- – Антивандальность соединения
- – Коррозионная устойчивость соединения
- – Широкий диапазон выбора диаметров и длин для данного типа заклепки
- – Возможность окраски в цвета по стандарту RAL
- – Гильза: алюминий Al Mg 3,5
- Стержень: нержавеющая сталь А2 (AISI 304)
Применение
Лицевое крепление ФЦП и композита, алюминиевая конструкция НФС.
Нагрузки
| Диаметр гильзы d1, мм | Срез, кН | Разрыв, кН |
|---|---|---|
| 2,4 | 0,40 | 0,50 |
| 3,2 | 0,88 | 1,15 |
| 4,0 | 1,30 | 1,96 |
| 4,8 | 1,87 | 2,79 |
| 5,0 | 2,15 | 3,00 |
| 6,0 | 3,20 | 4,60 |

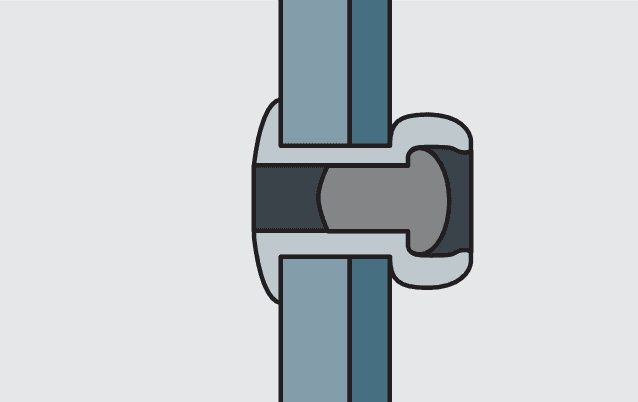

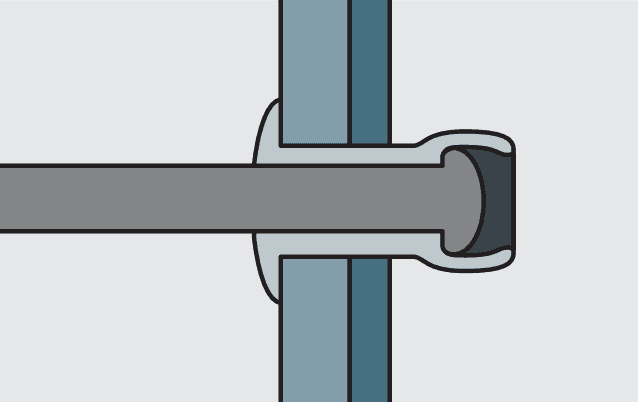

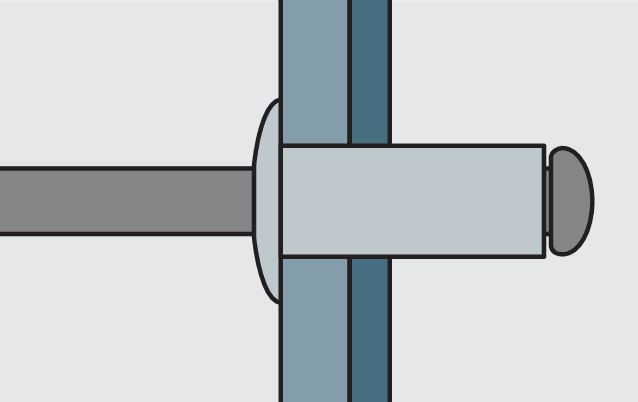

Установка
Технические данные

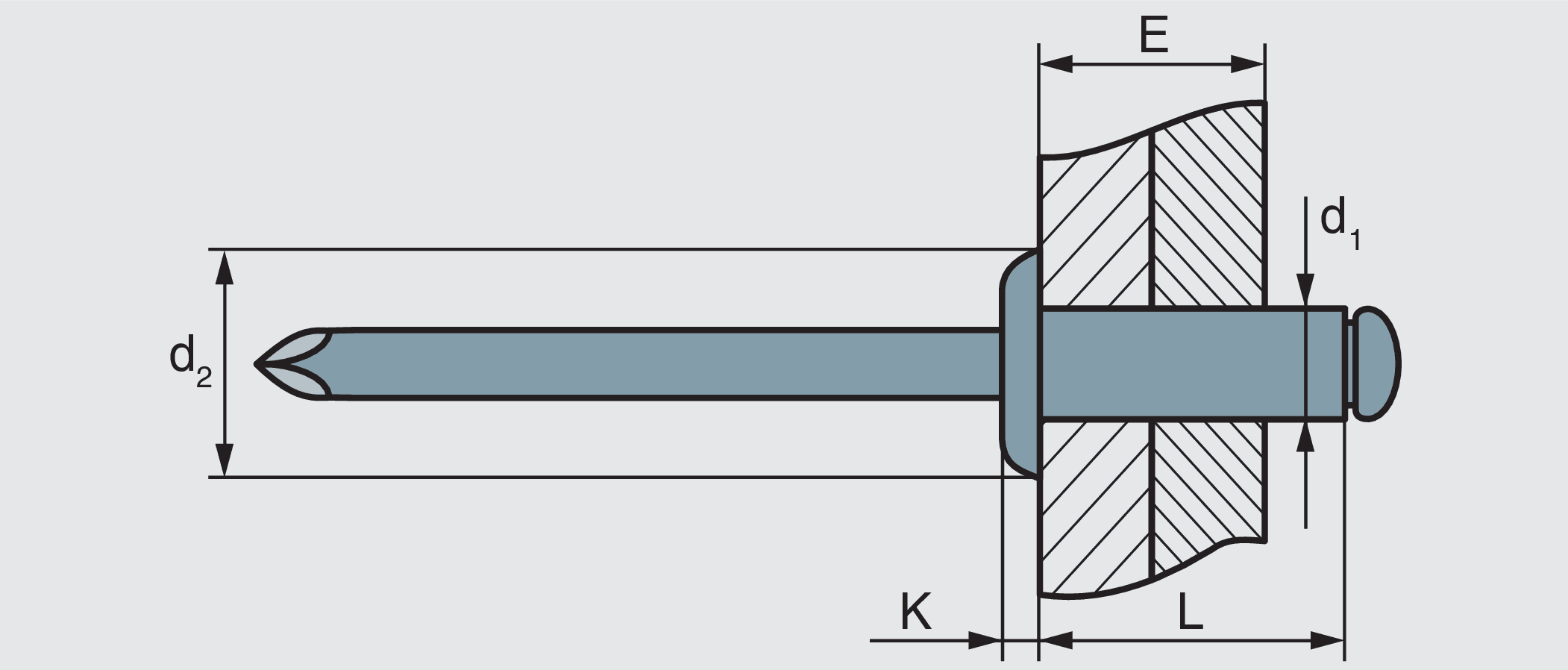

| Артикул | Диаметр гильзы d1, мм | Длина гильзы L, мм | Диаметр сверла, мм | Диаметр и толщина бортика d2 × K, мм | Толщина пакета материалов E, мм | Кол-во в упаковке, шт | Заказ |
|---|---|---|---|---|---|---|---|
| 01019002405H | 2,4 | 5,0 | 2,5 | 5,0x0,55 | 0,5–2,0 | 1000 | |
| 01019002406H | 2,4 | 6,0 | 2,5 | 5,0x0,55 | 2,0–4,0 | 1000 | |
| 01019002408H | 2,4 | 8,0 | 2,5 | 5,0x0,55 | 4,0–6,0 | 1000 | |
| 01019002410H | 2,4 | 10,0 | 2,5 | 5,0x0,55 | 6,0–8,0 | 1000 | |
| 01019003206H | 3,2 | 6,0 | 3,3 | 6,5x0,8 | 1,5–3,5 | 500 | |
| 01019003208H | 3,2 | 8,0 | 3,3 | 6,5x0,8 | 3,5–5,5 | 500 | |
| 01019003210H | 3,2 | 10,0 | 3,3 | 6,5x0,8 | 5,5–7,0 | 500 | |
| 01019003212H | 3,2 | 12,0 | 3,3 | 6,5x0,8 | 7,0–9,0 | 500 | |
| 01019003215H | 3,2 | 15,0 | 3,3 | 6,5x0,8 | 9,0–12,0 | 500 | |
| 01019003218H | 3,2 | 18,0 | 3,3 | 6,5x0,8 | 12,0–15,0 | 500 | |
| 01019003220H | 3,2 | 20,0 | 3,3 | 6,5x0,8 | 15,0–17,0 | 500 | |
| 01019004006H | 4,0 | 6,0 | 4,1 | 8,0x1,0 | 1,5–3,0 | 500 | |
| 01019004008H | 4,0 | 8,0 | 4,1 | 8,0x1,0 | 3,0–4,5 | 500 | |
| 01019004010H | 4,0 | 10,0 | 4,1 | 8,0x1,0 | 4,5–6,5 | 500 | |
| 01019004012H | 4,0 | 12,0 | 4,1 | 8,0x1,0 | 6,5–8,5 | 500 | |
| 01019004014H | 4,0 | 14,0 | 4,1 | 8,0x1,0 | 8,5–10,5 | 500 | |
| 01019004016H | 4,0 | 16,0 | 4,1 | 8,0x1,0 | 10,5–12,5 | 500 | |
| 01019004018H | 4,0 | 18,0 | 4,1 | 8,0x1,0 | 12,5–14,5 | 500 | |
| 01019004020H | 4,0 | 20,0 | 4,1 | 8,0x1,0 | 14,5–16,5 | 500 | |
| 01019004025H | 4,0 | 25,0 | 4,1 | 8,0x1,0 | 16,5–21,5 | 250 | |
| 01019004806H | 4,8 | 6,0 | 4,9 | 9,5x1,1 | 0,5–3,0 | 500 | |
| 01019004808H | 4,8 | 8,0 | 4,9 | 9,5x1,1 | 3,0–4,5 | 500 | |
| 01019004810H | 4,8 | 10,0 | 4,9 | 9,5x1,1 | 4,5–6,0 | 500 | |
| 01019004812H | 4,8 | 12,0 | 4,9 | 9,5x1,1 | 6,0–8,0 | 500 | |
| 01019004814H | 4,8 | 14,0 | 4,9 | 9,5x1,1 | 8,0–10,0 | 250 | |
| 01019004816H | 4,8 | 16,0 | 4,9 | 9,5x1,1 | 10,0–12,0 | 250 | |
| 01019004818H | 4,8 | 18,0 | 4,9 | 9,5x1,1 | 12,0–14,0 | 250 | |
| 01019004821H | 4,8 | 21,0 | 4,9 | 9,5x1,1 | 14,0–17,0 | 250 | |
| 01019004824H | 4,8 | 24,0 | 4,9 | 9,5x1,1 | 17,0–20,0 | 200 | |
| 01019004827H | 4,8 | 27,0 | 4,9 | 9,5x1,1 | 20,0–23,0 | 200 | |
| 01019004830H | 4,8 | 30,0 | 4,9 | 9,5x1,1 | 23,0–25,0 | 200 | |
| 01019004835H | 4,8 | 35,0 | 4,9 | 9,5x1,1 | 25,0–30,0 | 150 | |
| 01019004840H | 4,8 | 40,0 | 4,9 | 9,5x1,1 | 30,0–35,0 | 150 | |
| 01019004850H | 4,8 | 45,0 | 4,9 | 9,5x1,1 | 35,0–40,0 | 100 | |
| 01019005006H | 5,0 | 6,0 | 5,1 | 9,5x1,1 | 0,5–3,0 | 500 | |
| 01019005008H | 5,0 | 8,0 | 5,1 | 9,5x1,1 | 3,0–4,5 | 500 | |
| 01019005010H | 5,0 | 10,0 | 5,1 | 9,5x1,1 | 4,5–6,0 | 500 | |
| 01019005012H | 5,0 | 12,0 | 5,1 | 9,5x1,1 | 6,0–8,0 | 500 | |
| 01019005014H | 5,0 | 14,0 | 5,1 | 9,5x1,1 | 8,0–10,0 | 250 | |
| 01019005016H | 5,0 | 16,0 | 5,1 | 9,5x1,1 | 10,0–12,0 | 250 | |
| 01019005018H | 5,0 | 18,0 | 5,1 | 9,5x1,1 | 12,0–14,0 | 250 | |
| 01019005020H | 5,0 | 20,0 | 5,1 | 9,5x1,1 | 14,0–16,0 | 250 | |
| 01019005025H | 5,0 | 25,0 | 5,1 | 9,5x1,1 | 16,0–21,0 | 200 | |
| 01019005030H | 5,0 | 30,0 | 5,1 | 9,5x1,1 | 21,0–25,0 | 200 | |
| 01019005035H | 5,0 | 35,0 | 5,1 | 9,5x1,1 | 27,0–30,0 | 150 | |
| 01019005040H | 5,0 | 40,0 | 5,1 | 9,5x1,1 | 30,0–35,0 | 150 | |
| 01019005045H | 5,0 | 45,0 | 5,1 | 9,5x1,1 | 35,0–40,0 | 100 | |
| 01019005050H | 5,0 | 50,0 | 5,1 | 9,5x1,1 | 40,0–45,0 | 100 | |
| 01019006008H | 6,0 | 8,0 | 6,1 | 12,0x1,8 | 2,0–3,0 | 250 | |
| 01019006010H | 6,0 | 10,0 | 6,1 | 12,0x1,8 | 3,0–5,0 | 250 | |
| 01019006012H | 6,0 | 12,0 | 6,1 | 12,0x1,8 | 5,0–7,0 | 250 | |
| 01019006014H | 6,0 | 14,0 | 6,1 | 12,0x1,8 | 7,0–9,0 | 250 | |
| 01019006016H | 6,0 | 16,0 | 6,1 | 12,0x1,8 | 9,0–11,0 | 250 | |
| 01019006018H | 6,0 | 18,0 | 6,1 | 12,0x1,8 | 11,0–13,0 | 200 | |
| 01019006020H | 6,0 | 20,0 | 6,1 | 12,0x1,8 | 13,0–15,0 | 200 | |
| 01019006025H | 6,0 | 25,0 | 6,1 | 12,0x1,8 | 15,0–20,0 | 200 | |
| 01019006030H | 6,0 | 30,0 | 6,1 | 12,0x1,8 | 20,0–25,0 | 150 | |
| 01019006035H | 6,0 | 35,0 | 6,1 | 12,0x1,8 | 25,0–30,0 | 150 |
