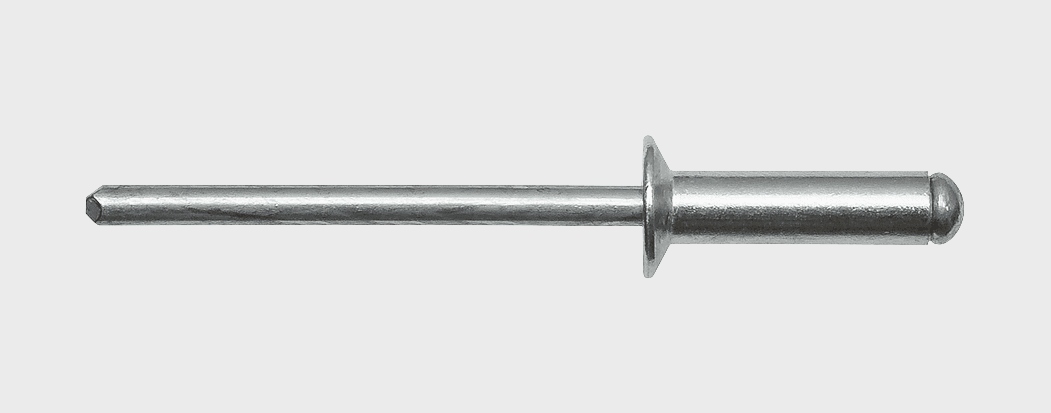

Алюминий / Сталь Заклепка вытяжная, потайной бортик 120°
Сталь
Нерж. сталь
Цветные металлы
RAL
Свойства
- – Стандарт ISO 15978, DIN 7337 и ГОСТ Р 15978
- – Высокая технологичность монтажа
- – Высокая степень сжатия соединяемых материалов
- – Гарантированное качество соединения
- – Не требуется специальное обучение
- – Возможность соединения различных материалов
- – Антивандальность соединения
- – Возможность окраски в цвета по стандарту RAL
- – Гильза: алюминий Al Mg 2,5
- Стержень: сталь оцинкованная
Применение
Окна, двери, ЛСТК, электрические шкафы.
Нагрузки
| Диаметр гильзы d1, мм | Срез, кН | Разрыв, кН |
|---|---|---|
| 2,4 | 0,35 | 0,55 |
| 3,0 | 0,55 | 0,85 |
| 3,2 | 0,88 | 1,15 |
| 4,0 | 1,30 | 1,96 |
| 4,8 | 1,87 | 2,79 |
| 5,0 | 2,15 | 3,10 |

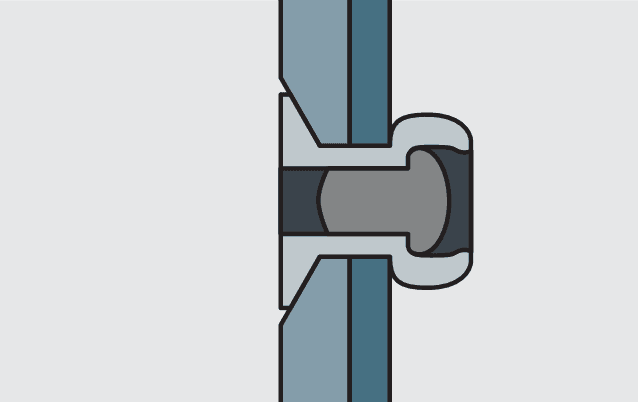

Установка

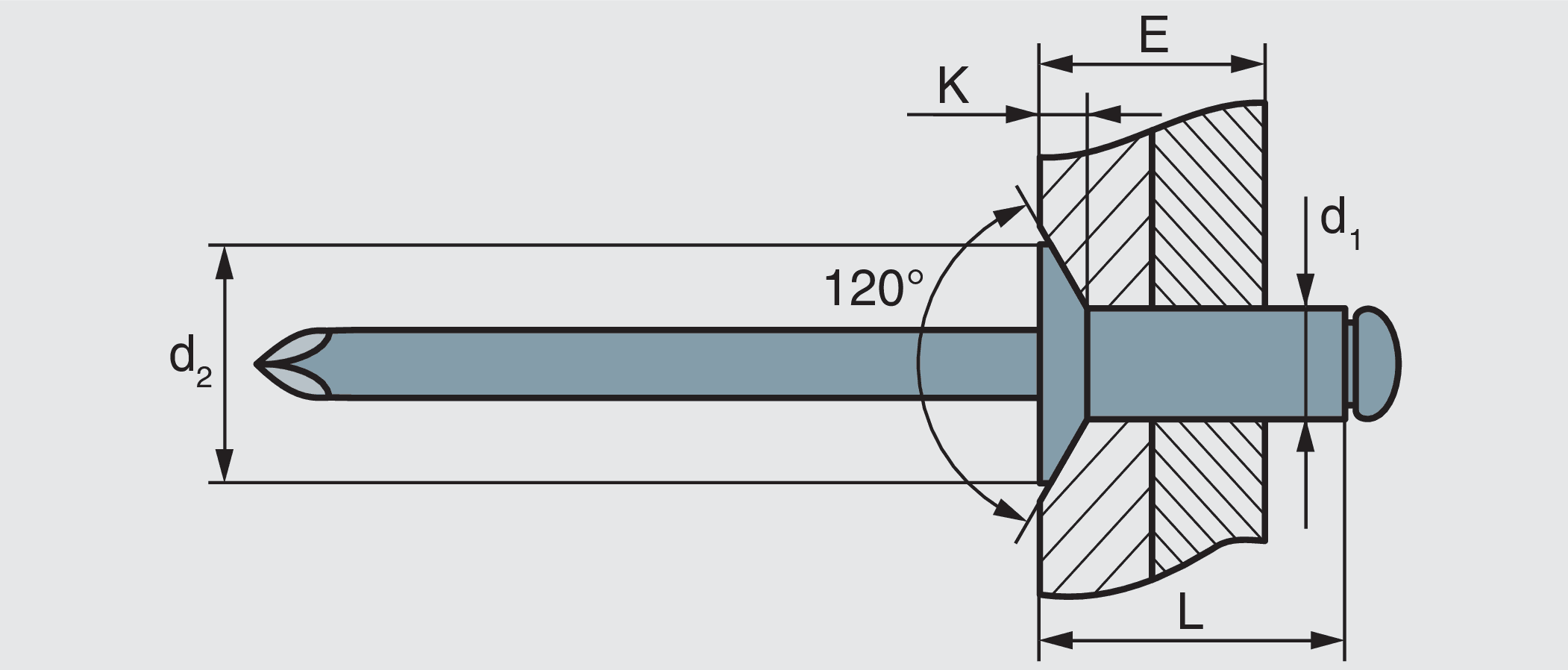

Технические данные
| Артикул | Диаметр гильзы d1, мм | Длина гильзы L, мм | Диаметр сверла, мм | Диаметр и толщина бортика d2 × K, мм | Толщина пакета материалов E, мм | Кол-во в упаковке, шт | Заказ |
|---|---|---|---|---|---|---|---|
| 01020002406H | 2,4 | 6,0 | 2,5 | 5,0х0,8 | 2,0–4,0 | 1000 | |
| 01020002408H | 2,4 | 8,0 | 2,5 | 5,0х0,8 | 4,0–6,0 | 1000 | |
| 01020002410H | 2,4 | 10,0 | 2,5 | 5,0х0,8 | 6,0–8,0 | 1000 | |
| 01020003006H | 3,0 | 6,0 | 3,1 | 6,0x0,9 | 1,5–3,5 | 1000 | |
| 01020003008H | 3,0 | 8,0 | 3,1 | 6,0x0,9 | 3,5–5,5 | 1000 | |
| 01020003010H | 3,0 | 10,0 | 3,1 | 6,0x0,9 | 5,5–7,0 | 1000 | |
| 01020003012H | 3,0 | 12,0 | 3,1 | 6,0x0,9 | 7,0–9,0 | 1000 | |
| 01020003014H | 3,0 | 14,0 | 3,1 | 6,0x0,9 | 9,0–11,0 | 1000 | |
| 01020003016H | 3,0 | 16,0 | 3,1 | 6,0x0,9 | 11,0–13,0 | 1000 | |
| 01020003206H | 3,2 | 6,0 | 3,3 | 6,0x0,9 | 1,5–3,5 | 1000 | |
| 01020003208H | 3,2 | 8,0 | 3,3 | 6,0x0,9 | 3,5–5,5 | 1000 | |
| 01020003210H | 3,2 | 10,0 | 3,3 | 6,0x0,9 | 5,5–7,0 | 1000 | |
| 01020003212H | 3,2 | 12,0 | 3,3 | 6,0x0,9 | 7,0–9,0 | 1000 | |
| 01020003215H | 3,2 | 15,0 | 3,3 | 6,0x0,9 | 9,0–11,0 | 1000 | |
| 01020003218H | 3,2 | 18,0 | 3,3 | 6,0x0,9 | 11,0–13,0 | 1000 | |
| 01020004006H | 4,0 | 6,0 | 4,1 | 7,5x1,0 | 1,5–3,0 | 1000 | |
| 01020004008H | 4,0 | 8,0 | 4,1 | 7,5x1,0 | 3,0–5,0 | 1000 | |
| 01020004010H | 4,0 | 10,0 | 4,1 | 7,5x1,0 | 5,0–6,5 | 1000 | |
| 01020004012H | 4,0 | 12,0 | 4,1 | 7,5x1,0 | 6,5–8,5 | 1000 | |
| 01020004014H | 4,0 | 14,0 | 4,1 | 7,5x1,0 | 8,5–10,5 | 500 | |
| 01020004016H | 4,0 | 16,0 | 4,1 | 7,5x1,0 | 10,5–12,5 | 500 | |
| 01020004018H | 4,0 | 18,0 | 4,1 | 7,5x1,0 | 12,5–14,5 | 500 | |
| 01020004020H | 4,0 | 20,0 | 4,1 | 7,5x1,0 | 14,5–16,5 | 500 | |
| 01020004806H | 4,8 | 6,0 | 4,9 | 9,5x1,2 | 0,5–3,0 | 500 | |
| 01020004808H | 4,8 | 8,0 | 4,9 | 9,5x1,2 | 3,0–4,5 | 500 | |
| 01020004810H | 4,8 | 10,0 | 4,9 | 9,5x1,2 | 4,5–6,0 | 500 | |
| 01020004812H | 4,8 | 12,0 | 4,9 | 9,5x1,2 | 6,0–8,0 | 500 | |
| 01020004814H | 4,8 | 14,0 | 4,9 | 9,5x1,2 | 8,0–10,0 | 250 | |
| 01020004816H | 4,8 | 16,0 | 4,9 | 9,5x1,2 | 10,0–12,0 | 250 | |
| 01020004818H | 4,8 | 18,0 | 4,9 | 9,5x1,2 | 12,0–14,0 | 250 | |
| 01020004821H | 4,8 | 21,0 | 4,9 | 9,5x1,2 | 14,0–17,0 | 250 | |
| 01020004824H | 4,8 | 24,0 | 4,9 | 9,5x1,2 | 17,0–20,0 | 200 | |
| 01020004827H | 4,8 | 27,0 | 4,9 | 9,5x1,2 | 20,0–23,0 | 200 | |
| 01020004830H | 4,8 | 30,0 | 4,9 | 9,5x1,2 | 23,0–25,0 | 200 | |
| 01020004835H | 4,8 | 35,0 | 4,9 | 9,5x1,2 | 25,0–30,0 | 150 | |
| 01020005006H | 5,0 | 6,0 | 5,1 | 9,5x1,2 | 0,5–3,0 | 500 | |
| 01020005008H | 5,0 | 8,0 | 5,1 | 9,5x1,2 | 3,0–4,5 | 500 | |
| 01020005010H | 5,0 | 10,0 | 5,1 | 9,5x1,2 | 4,5–6,0 | 500 | |
| 01020005012H | 5,0 | 12,0 | 5,1 | 9,5x1,2 | 6,0–8,0 | 500 | |
| 01020005014H | 5,0 | 14,0 | 5,1 | 9,5x1,2 | 8,0–10,0 | 250 | |
| 01020005016H | 5,0 | 16,0 | 5,1 | 9,5x1,2 | 10,0–12,0 | 250 | |
| 01020005018H | 5,0 | 18,0 | 5,1 | 9,5x1,2 | 12,0–14,0 | 250 | |
| 01020005020H | 5,0 | 20,0 | 5,1 | 9,5x1,2 | 14,0–16,0 | 250 | |
| 01020005025H | 5,0 | 25,0 | 5,1 | 9,5x1,2 | 16,0–21,0 | 200 | |
| 01020005030H | 5,0 | 30,0 | 5,1 | 9,5x1,2 | 21,0–25,0 | 200 |
