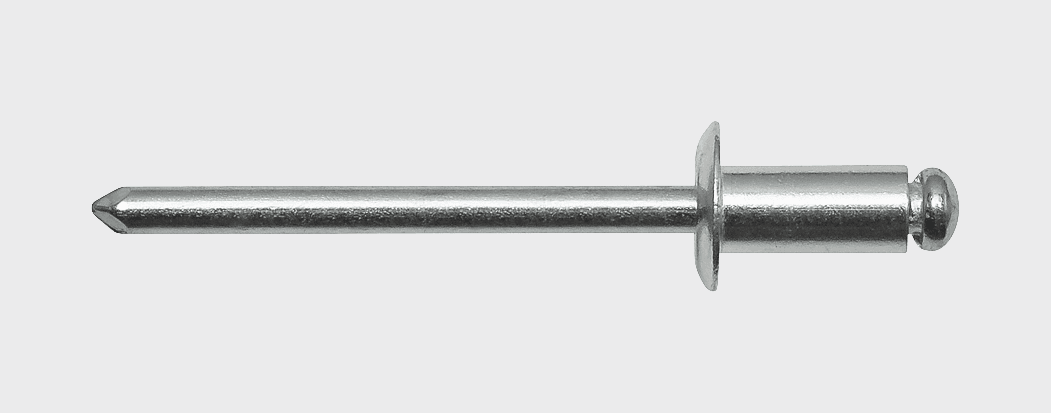

Алюминий / Сталь Заклепка вытяжная, стандартный бортик
Сталь
Нерж. сталь
Цветные металлы
RAL
Свойства
- – Стандарт ISO 15977, DIN 7337 и ГОСТ Р 15977
- – Высокая технологичность монтажа
- – Высокая степень сжатия соединяемых материалов
- – Гарантированное качество соединения
- – Не требуется специальное обучение
- – Возможность соединения различных материалов
- – Антивандальность соединения
- – Возможность окраски в цвета по стандарту RAL
- – Гильза: алюминий Al Mg 2,5
- Стержень: сталь оцинкованная
Применение
Вентиляционные системы, стремянки, бытовая техника, металлические двери и т.д.
Нагрузки
| Диаметр гильзы d1, мм | Срез, кН | Разрыв, кН |
|---|---|---|
| 2,4 | 0,40 | 0,50 |
| 3,0 | 0,75 | 0,85 |
| 3,2 | 0,88 | 1,15 |
| 4,0 | 1,25 | 1,80 |
| 4,8 | 1,85 | 2,80 |
| 5,0 | 2,25 | 3,00 |
| 6,0 | 2,50 | 3,90 |
| 6,4 | 3,00 | 5,00 |

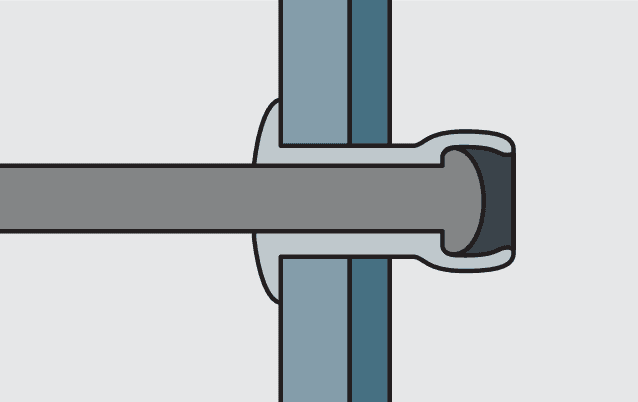

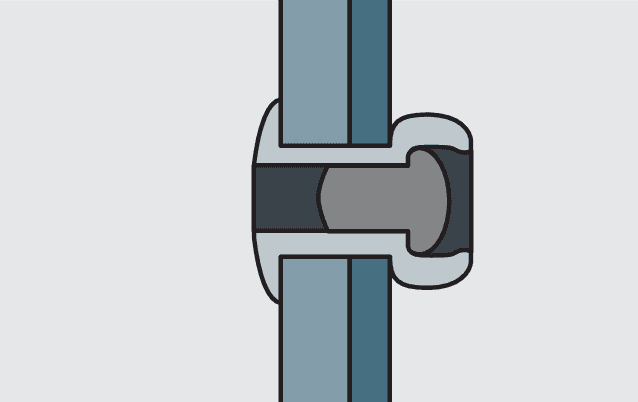

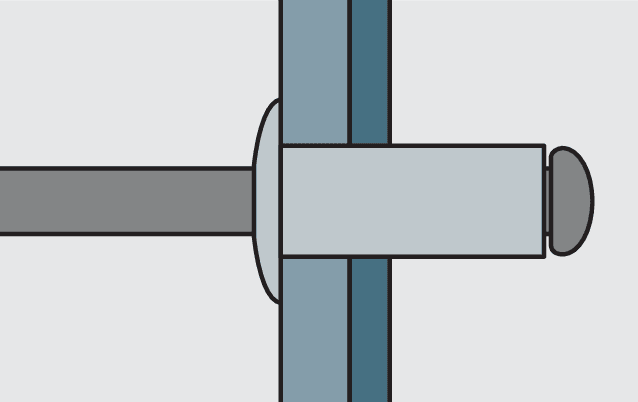

Установка

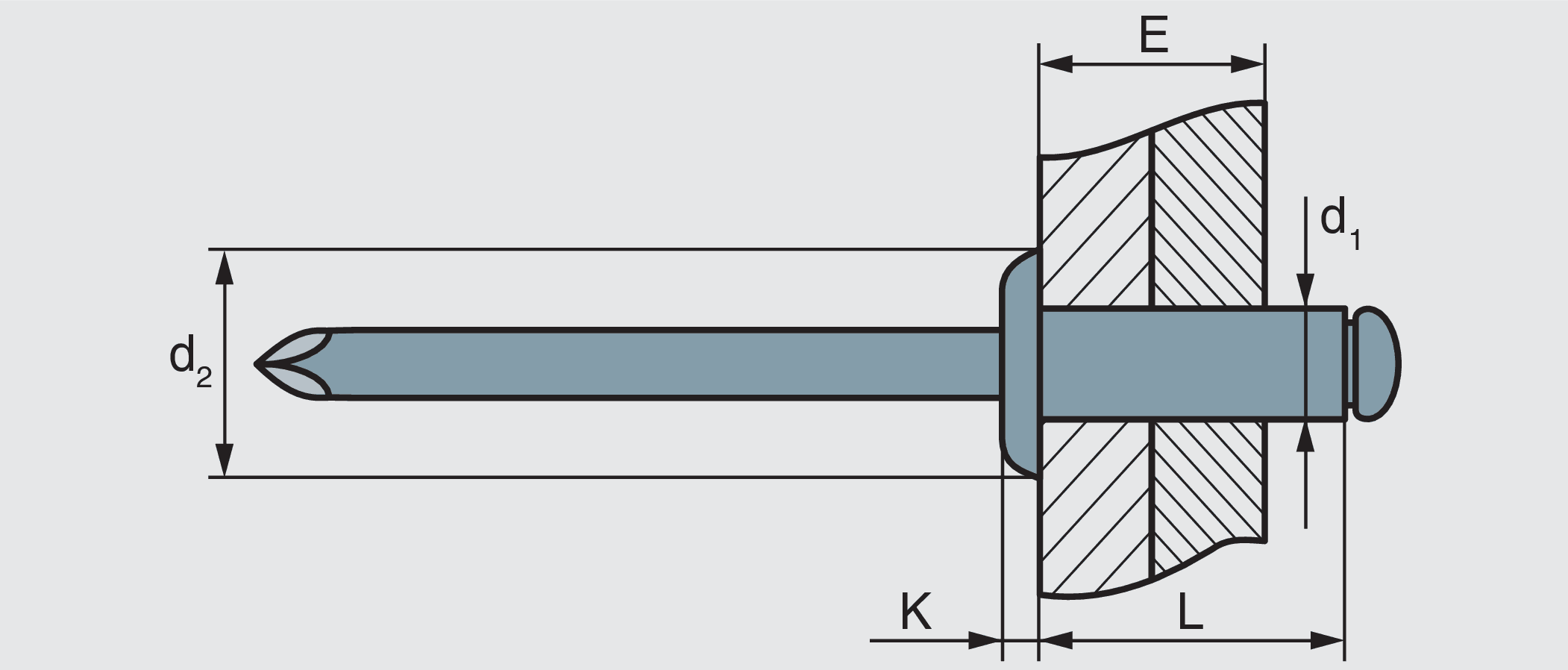

Технические данные
| Артикул | Диаметр гильзы d1, мм | Длина гильзы L, мм | Диаметр сверла, мм | Диаметр и толщина бортика d2 × K, мм | Толщина пакета материалов E, мм | Кол-во в упаковке, шт | Заказ |
|---|---|---|---|---|---|---|---|
| 01010002404H | 2,4 | 4,0 | 2,5 | 5,0x0,55 | 0,5–2,0 | 1000 | |
| 01010002406H | 2,4 | 6,0 | 2,5 | 5,0x0,55 | 2,0–4,0 | 1000 | |
| 01010002408H | 2,4 | 8,0 | 2,5 | 5,0x0,55 | 4,0–6,0 | 1000 | |
| 01010002410H | 2,4 | 10,0 | 2,5 | 5,0x0,55 | 6,0–8,0 | 1000 | |
| 01010003005H | 3,0 | 5,0 | 3,1 | 6,5x0,8 | 0,5–2,5 | 1000 | |
| 01010003006H | 3,0 | 6,0 | 3,1 | 6,5x0,8 | 1,5–3,5 | 1000 | |
| 01010003007H | 3,0 | 7,0 | 3,1 | 6,5x0,8 | 1,5–4,5 | 1000 | |
| 01010003008H | 3,0 | 8,0 | 3,1 | 6,5x0,8 | 3,5–5,5 | 1000 | |
| 01010003010H | 3,0 | 10,0 | 3,1 | 6,5x0,8 | 5,5–7,0 | 1000 | |
| 01010003012H | 3,0 | 12,0 | 3,1 | 6,5x0,8 | 7,0–9,0 | 1000 | |
| 01010003014H | 3,0 | 14,0 | 3,1 | 6,5x0,8 | 9,0–11,0 | 1000 | |
| 01010003204H | 3,2 | 4,0 | 3,3 | 6,5x0,8 | 0,5–1,5 | 1000 | |
| 01010003205H | 3,2 | 5,0 | 3,3 | 6,5x0,8 | 0,5–2,5 | 1000 | |
| 01010003206H | 3,2 | 6,0 | 3,3 | 6,5x0,8 | 1,5–3,5 | 1000 | |
| 01010003208H | 3,2 | 8,0 | 3,3 | 6,5x0,8 | 3,5–5,5 | 1000 | |
| 01010003210H | 3,2 | 10,0 | 3,3 | 6,5x0,8 | 5,5–7,0 | 1000 | |
| 01010003212H | 3,2 | 12,0 | 3,3 | 6,5x0,8 | 7,0–9,0 | 1000 | |
| 01010003215H | 3,2 | 15,0 | 3,3 | 6,5x0,8 | 9,0–12,0 | 1000 | |
| 01010003218H | 3,2 | 18,0 | 3,3 | 6,5x0,8 | 12,0–15,0 | 1000 | |
| 01010004006H | 4,0 | 6,0 | 4,1 | 8,0x1,0 | 0,5–3,0 | 1000 | |
| 01010004007H | 4,0 | 7,0 | 4,1 | 8,0x1,0 | 3,0–4,5 | 1000 | |
| 01010004008H | 4,0 | 8,0 | 4,1 | 8,0x1,0 | 3,0–5,0 | 1000 | |
| 01010004010H | 4,0 | 10,0 | 4,1 | 8,0x1,0 | 5,0–6,5 | 1000 | |
| 01010004012H | 4,0 | 12,0 | 4,1 | 8,0x1,0 | 6,5–8,5 | 1000 | |
| 01010004014H | 4,0 | 14,0 | 4,1 | 8,0x1,0 | 8,5–10,5 | 1000 | |
| 01010004016H | 4,0 | 16,0 | 4,1 | 8,0x1,0 | 10,5–12,5 | 500 | |
| 01010004018H | 4,0 | 18,0 | 4,1 | 8,0x1,0 | 12,5–14,5 | 500 | |
| 01010004020H | 4,0 | 20,0 | 4,1 | 8,0x1,0 | 14,5–16,5 | 500 | |
| 01010004025H | 4,0 | 25,0 | 4,1 | 8,0x1,0 | 16,5–21,5 | 250 | |
| 01010004030H | 4,0 | 30,0 | 4,1 | 8,0x1,0 | 21,5–26,0 | 250 | |
| 01010004806H | 4,8 | 6,0 | 4,9 | 9,5x1,1 | 0,5–3,0 | 500 | |
| 01010004808H | 4,8 | 8,0 | 4,9 | 9,5x1,1 | 3,0–4,5 | 500 | |
| 01010004810H | 4,8 | 10,0 | 4,9 | 9,5x1,1 | 4,5–6,0 | 500 | |
| 01010004812H | 4,8 | 12,0 | 4,9 | 9,5x1,1 | 6,0–8,0 | 500 | |
| 01010004814H | 4,8 | 14,0 | 4,9 | 9,5x1,1 | 8,0–10,0 | 250 | |
| 01010004816H | 4,8 | 16,0 | 4,9 | 9,5x1,1 | 10,0–12,0 | 250 | |
| 01010004818H | 4,8 | 18,0 | 4,9 | 9,5x1,1 | 12,0–14,0 | 250 | |
| 01010004821H | 4,8 | 21,0 | 4,9 | 9,5x1,1 | 14,0–17,0 | 250 | |
| 01010004824H | 4,8 | 24,0 | 4,9 | 9,5x1,1 | 17,0–20,0 | 200 | |
| 01010004827H | 4,8 | 27,0 | 4,9 | 9,5x1,1 | 20,0–23,0 | 200 | |
| 01010004830H | 4,8 | 30,0 | 4,9 | 9,5x1,1 | 23,0–25,0 | 200 | |
| 01010004832H | 4,8 | 32,0 | 4,9 | 9,5x1,1 | 25,0–27,0 | 150 | |
| 01010004835H | 4,8 | 35,0 | 4,9 | 9,5x1,1 | 27,0–30,0 | 150 | |
| 01010005006H | 5,0 | 6,0 | 5,1 | 9,5x1,1 | 0,5–3,0 | 500 | |
| 01010005008H | 5,0 | 8,0 | 5,1 | 9,5x1,1 | 3,0–4,5 | 500 | |
| 01010005010H | 5,0 | 10,0 | 5,1 | 9,5x1,1 | 4,5–6,0 | 500 | |
| 01010005012H | 5,0 | 12,0 | 5,1 | 9,5x1,1 | 6,0–8,0 | 500 | |
| 01010005014H | 5,0 | 14,0 | 5,1 | 9,5x1,1 | 8,0–10,0 | 250 | |
| 01010005016H | 5,0 | 16,0 | 5,1 | 9,5x1,1 | 10,0–12,0 | 250 | |
| 01010005018H | 5,0 | 18,0 | 5,1 | 9,5x1,1 | 12,0–14,0 | 250 | |
| 01010005020H | 5,0 | 20,0 | 5,1 | 9,5x1,1 | 14,0–16,0 | 250 | |
| 01010005025H | 5,0 | 25,0 | 5,1 | 9,5x1,1 | 16,0–21,0 | 200 | |
| 01010005030H | 5,0 | 30,0 | 5,1 | 9,5x1,1 | 21,0–25,0 | 200 | |
| 01010006008H | 6,0 | 8,0 | 6,1 | 12,0x1,5 | 2,0–4,0 | 250 | |
| 01010006010H | 6,0 | 10,0 | 6,1 | 12,0x1,5 | 4,0–6,0 | 250 | |
| 01010006012H | 6,0 | 12,0 | 6,1 | 12,0x1,5 | 6,0–8,0 | 250 | |
| 01010006014H | 6,0 | 14,0 | 6,1 | 12,0x1,5 | 8,0–10,0 | 250 | |
| 01010006016H | 6,0 | 16,0 | 6,1 | 12,0x1,5 | 10,0–11,0 | 250 | |
| 01010006018H | 6,0 | 18,0 | 6,1 | 12,0x1,5 | 11,0–13,0 | 200 | |
| 01010006020H | 6,0 | 20,0 | 6,1 | 12,0x1,5 | 13,0–15,0 | 200 | |
| 01010006025H | 6,0 | 25,0 | 6,1 | 12,0x1,5 | 15,0–20,0 | 200 | |
| 01010006030H | 6,0 | 30,0 | 6,1 | 12,0x1,5 | 20,0–24,0 | 150 | |
| 01010006035H | 6,0 | 35,0 | 6,1 | 12,0x1,5 | 24,0–29,0 | 100 | |
| 01010006412H | 6,4 | 12,0 | 6,5 | 13,0x1,8 | 2,0–6,0 | 250 | |
| 01010006415H | 6,4 | 15,0 | 6,5 | 13,0x1,8 | 6,0–9,0 | 250 | |
| 01010006418H | 6,4 | 18,0 | 6,5 | 13,0x1,8 | 9,0–12,0 | 200 | |
| 01010006422H | 6,4 | 22,0 | 6,5 | 13,0x1,8 | 12,0–16,0 | 200 | |
| 01010006426H | 6,4 | 26,0 | 6,5 | 13,0x1,8 | 16,0–20,0 | 150 | |
| 01010006430H | 6,4 | 30,0 | 6,5 | 13,0x1,8 | 20,0–24,0 | 150 | |
| 01010006435H | 6,4 | 35,0 | 6,5 | 13,0x1,8 | 24,0–29,0 | 100 | |
| 01010006450H | 6,4 | 50,0 | 6,5 | 13,0x1,8 | 29,0–42,0 | 100 |
