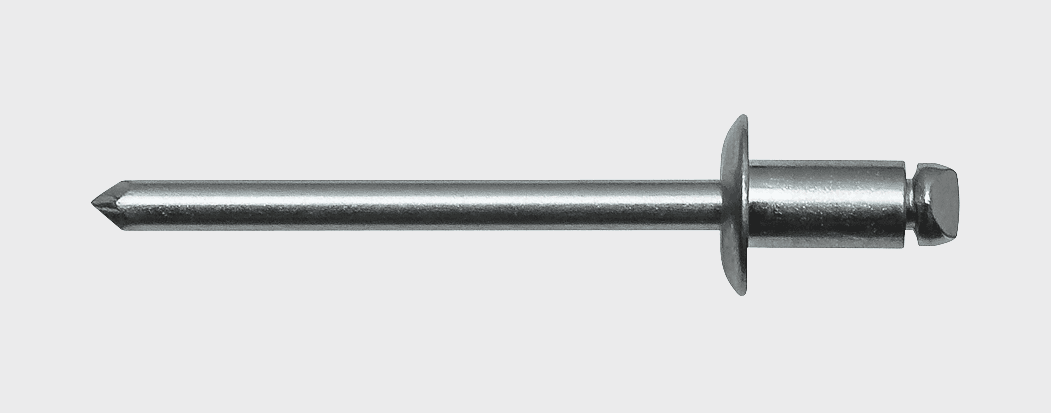

Сталь / Сталь Заклепка вытяжная, стандартный бортик
Сталь
Нерж. сталь
Цветные металлы
RAL
Свойства
- – Стандарт ISO 15979, ГОСТ Р 15979
- – Высокая технологичность монтажа
- – Высокая степень сжатия соединяемых материалов
- – Гарантированное качество соединения
- – Не требуется специальное обучение
- – Возможность соединения различных материалов
- – Антивандальность соединения
- – Широкий диапазон выбора диаметров и длин для данного типа заклепки
- – Возможность окраски в цвета по стандарту RAL
- – Гильза: сталь оцинкованная
- Стержень: сталь оцинкованная
Применение
Сборка электрошкафов, каркас стиральных машин, крепление шильдиков.
Нагрузки
| Диаметр гильзы d1, мм | Срез, кН | Разрыв, кН |
|---|---|---|
| 3,0 | 1,10 | 1,50 |
| 3,2 | 1,40 | 1,70 |
| 4,0 | 2,00 | 2,40 |
| 4,8 | 2,70 | 3,00 |
| 5,0 | 3,50 | 4,80 |
| 6,0 | 4,20 | 5,50 |
| 6,4 | 4,95 | 7,00 |

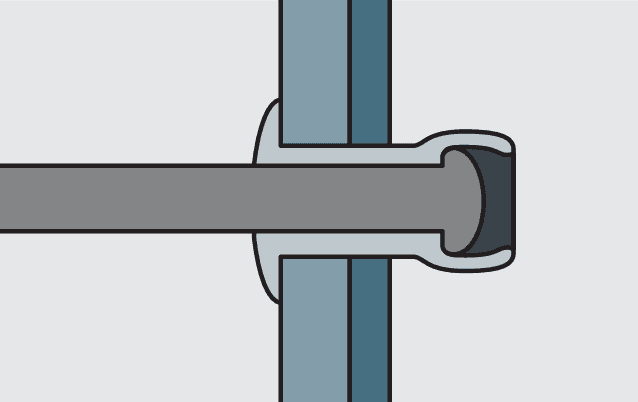

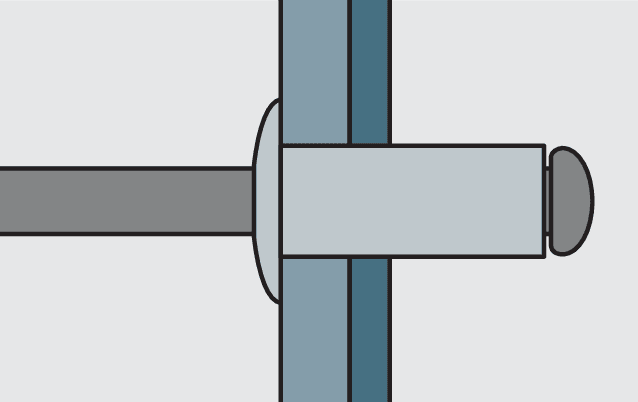

Установка

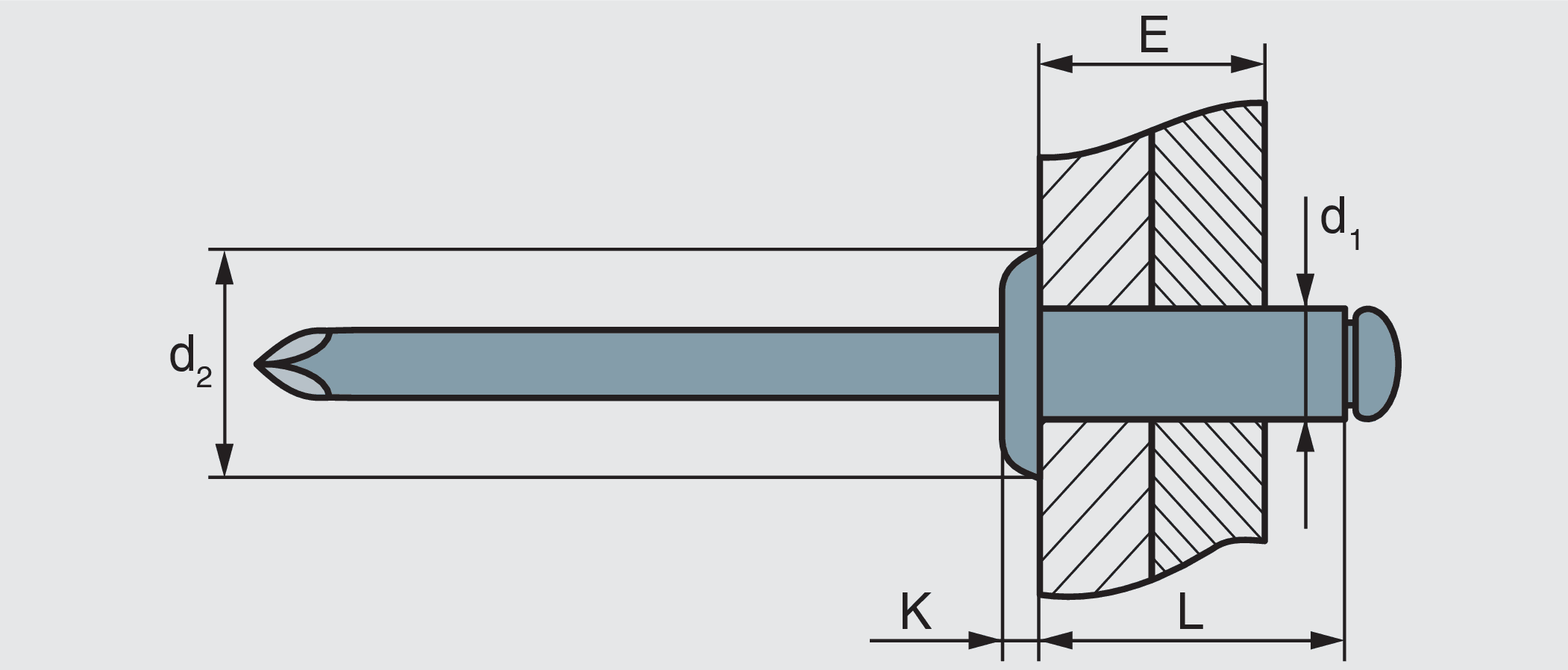

Технические данные
| Артикул | Диаметр гильзы d1, мм | Длина гильзы L, мм | Диаметр сверла, мм | Диаметр и толщина бортика d2 × K, мм | Толщина пакета материалов E, мм | Кол-во в упаковке, шт | Заказ |
|---|---|---|---|---|---|---|---|
| 01210003006H | 3,0 | 6,0 | 3,1 | 6,5x0,8 | 0,5–3,0 | 1000 | |
| 01210003008H | 3,0 | 8,0 | 3,1 | 6,5x0,8 | 3,0–5,0 | 1000 | |
| 01210003010H | 3,0 | 10,0 | 3,1 | 6,5x0,8 | 5,0–6,5 | 1000 | |
| 01210003012H | 3,0 | 12,0 | 3,1 | 6,5x0,8 | 6,5–8,0 | 1000 | |
| 01210003206H | 3,2 | 6,0 | 3,3 | 6,5х0,8 | 0,5–3,0 | 1000 | |
| 01210003208H | 3,2 | 8,0 | 3,3 | 6,5х0,8 | 3,0–5,0 | 1000 | |
| 01210003210H | 3,2 | 10,0 | 3,3 | 6,5х0,8 | 5,0–6,5 | 1000 | |
| 01210003212H | 3,2 | 12,0 | 3,3 | 6,5х0,8 | 6,5–8,0 | 1000 | |
| 01210003214H | 3,2 | 14,0 | 3,3 | 6,5х0,8 | 8,0–10,0 | 1000 | |
| 01210003216H | 3,2 | 16,0 | 3,3 | 6,5х0,8 | 8,0–12,0 | 1000 | |
| 01210004006H | 4,0 | 6,0 | 4,1 | 8,0x1,0 | 1,0–3,0 | 1000 | |
| 01210004008H | 4,0 | 8,0 | 4,1 | 8,0x1,0 | 3,0–5,0 | 1000 | |
| 01210004010H | 4,0 | 10,0 | 4,1 | 8,0x1,0 | 5,0–6,5 | 1000 | |
| 01210004012H | 4,0 | 12,0 | 4,1 | 8,0x1,0 | 6,5–9,0 | 1000 | |
| 01210004014H | 4,0 | 14,0 | 4,1 | 8,0x1,0 | 9,0–10,0 | 500 | |
| 01210004016H | 4,0 | 16,0 | 4,1 | 8,0x1,0 | 9,0–12,0 | 500 | |
| 01210004018H | 4,0 | 18,0 | 4,1 | 8,0x1,0 | 12,0–14,5 | 500 | |
| 01210004020H | 4,0 | 20,0 | 4,1 | 8,0x1,0 | 14,5–16,0 | 500 | |
| 01210004806H | 4,8 | 6,0 | 4,9 | 9,5x1,1 | 1,0–3,0 | 500 | |
| 01210004808H | 4,8 | 8,0 | 4,9 | 9,5x1,1 | 2,5–4,0 | 500 | |
| 01210004810H | 4,8 | 10,0 | 4,9 | 9,5x1,1 | 4,0–6,0 | 500 | |
| 01210004812H | 4,8 | 12,0 | 4,9 | 9,5x1,1 | 6,0–8,0 | 500 | |
| 01210004814H | 4,8 | 14,0 | 4,9 | 9,5x1,1 | 8,0–9,5 | 250 | |
| 01210004816H | 4,8 | 16,0 | 4,9 | 9,5x1,1 | 8,0–11,0 | 250 | |
| 01210004818H | 4,8 | 18,0 | 4,9 | 9,5x1,1 | 10,0–13,0 | 250 | |
| 01210004821H | 4,8 | 21,0 | 4,9 | 9,5x1,1 | 11,0–15,0 | 250 | |
| 01210004824H | 4,8 | 24,0 | 4,9 | 9,5x1,1 | 15,0–19,5 | 200 | |
| 01210004830H | 4,8 | 30,0 | 4,9 | 9,5x1,1 | 19,0–25,0 | 200 | |
| 01210004835H | 4,8 | 35,0 | 4,9 | 9,5x1,1 | 25,0–30,0 | 150 | |
| 01210005008H | 5,0 | 8,0 | 5,1 | 9,5x1,1 | 2,5–4,0 | 500 | |
| 01210005010H | 5,0 | 10,0 | 5,1 | 9,5x1,1 | 4,0–6,0 | 500 | |
| 01210005012H | 5,0 | 12,0 | 5,1 | 9,5x1,1 | 6,0–8,0 | 500 | |
| 01210005014H | 5,0 | 14,0 | 5,1 | 9,5x1,1 | 8,0–9,5 | 250 | |
| 01210005016H | 5,0 | 16,0 | 5,1 | 9,5x1,1 | 8,0–11,0 | 250 | |
| 01210005018H | 5,0 | 18,0 | 5,1 | 9,5x1,1 | 10,0–13,0 | 250 | |
| 01210005020H | 5,0 | 20,0 | 5,1 | 9,5x1,1 | 11,0–15,0 | 250 | |
| 01210005025H | 5,0 | 25,0 | 5,1 | 9,5x1,1 | 15,0–19,5 | 200 | |
| 01210005030H | 5,0 | 30,0 | 5,1 | 9,5x1,1 | 19,5–25,0 | 200 | |
| 01210005035H | 5,0 | 35,0 | 5,1 | 9,5x1,1 | 25,0–30,0 | 150 | |
| 01210006008H | 6,0 | 8,0 | 6,1 | 12,0x1,5 | 1,5–3,0 | 250 | |
| 01210006010H | 6,0 | 10,0 | 6,1 | 12,0x1,5 | 3,0–4,0 | 250 | |
| 01210006012H | 6,0 | 12,0 | 6,1 | 12,0x1,5 | 4,0–6,0 | 250 | |
| 01210006014H | 6,0 | 14,0 | 6,1 | 12,0x1,5 | 6,0–8,0 | 250 | |
| 01210006016H | 6,0 | 16,0 | 6,1 | 12,0x1,5 | 6,0–10,0 | 250 | |
| 01210006018H | 6,0 | 18,0 | 6,1 | 12,0x1,5 | 10,0–12,0 | 200 | |
| 01210006020H | 6,0 | 20,0 | 6,1 | 12,0x1,5 | 10,0–14,0 | 200 | |
| 01210006025H | 6,0 | 25,0 | 6,1 | 12,0x1,5 | 14,0–19,0 | 200 | |
| 01210006030H | 6,0 | 30,0 | 6,1 | 12,0x1,5 | 19,0–24,0 | 150 | |
| 01210006408H | 6,4 | 8,0 | 6,5 | 13,0x1,8 | 1,5–3,0 | 250 | |
| 01210006410H | 6,4 | 10,0 | 6,5 | 13,0x1,8 | 3,0–4,0 | 250 | |
| 01210006412H | 6,4 | 12,0 | 6,5 | 13,0x1,8 | 4,0–6,0 | 250 | |
| 01210006415H | 6,4 | 15,0 | 6,5 | 13,0x1,8 | 6,0–9,0 | 250 | |
| 01210006418H | 6,4 | 18,0 | 6,5 | 13,0x1,8 | 9,0–11,0 | 200 | |
| 01210006420H | 6,4 | 20,0 | 6,5 | 13,0x1,8 | 9,0–13,0 | 150 | |
| 01210006422H | 6,4 | 22,0 | 6,5 | 13,0x1,8 | 13,0–16,0 | 150 | |
| 01210006425H | 6,4 | 25,0 | 6,5 | 13,0x1,8 | 13,0–19,0 | 150 |
